JCVision 32-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | JCVision |
| Certificering: | CE ROHS |
| Modelnummer: | JC-32ILB |
| Document: | JCVision 32-inch Light Box ....pdf |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|---|
| Prijs: | 600 |
| Verpakking Details: | Kartonnen doos |
| Levertijd: | 5-8 werkdagen |
| Betalingscondities: | T/T |
| Levering vermogen: | 50 |
|
Gedetailleerde informatie |
|||
| Merk: | JCVISION | Model: | HD-352C |
|---|---|---|---|
| Productnaam: | 32" wandlichtbak (vierkante rand | Schermgrootte: | 32 inch |
| Type achtergrondverlichting: | E-geleide | Oplossing: | 3840 × 2160 (4K UHD) |
| Beeldverhouding: | 48-52 HRC | Kijkhoek: | 89° / 89° / 89° (L/R/U/D) |
| Kleuren weergeven: | 16,7 miljoen | Helderheid: | 300 ± 20 cd/m² |
| Contrastverhouding: | 1200:1 | Reactietijd: | 6 ms |
| Actief weergavegebied: | 698,40 × 392,85 mm (H × V) | Chipset: | Hisilicon Hi3751V352F Quad-Core, tot 1,0 GHz |
| GPU: | Mali-450 MP2 | Besturingssysteem: | Android 9.0 |
| RAM: | 2 GB | Opslag: | 32GB |
| Decoderingsresolutie: | Tot 4K bij 60 Hz | Beeldomwenteling: | 0° / 90° / 180° / 270° handmatig |
| USB-poorten: | 2 × USB | HDMI: | 1 × HDMI-ingang |
| LVDS-interface: | 1 × LVDS (enkel/dubbel kanaal, 6/8-bit), ondersteunt 3,3V/5V/12V | Ethernet: | RJ45 100M Ethernet |
| Wifi: | 2,4G (802,11 b/g/n) | 4G module: | Optioneel |
| Achtergrondverlichting: | 12V-ondersteuning aan boord | Videoformaten: | MPEG4, MPEG2, MPEG1, WMV, TS, MOV, AVI, FLV, enz. |
| Audioformaten: | WAV, MP3, AAC, enz. | Beeldformaten: | JPEG, PNG, BMP, GIF, enz. |
| Luidsprekers: | 2 × 8Ω 3W | Stroominvoer: | Wisselstroom 100–230 V, 50/60 Hz |
| Stroomverbruik: | ≤ 120W | Netto gewicht: | 8,0 Kg |
| Bruto gewicht: | 100,0 kg | Afmetingen van de karton: | 830 × 150 × 550 mm |
| Productafmetingen: | 725,80 × 420,30 × 29,20 mm (inclusief wandmontage) | Installatie: | Wandmontage (liggend / portret) |
| Operatie: | 24/7 continu gebruik | ||
| Markeren: | 32-inch indoor digital signage display,E-LED backlit wall mount light box,wide viewing angle signage for retail |
||
Productomschrijving
Product Name: JCVision 32-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)
Product Description:

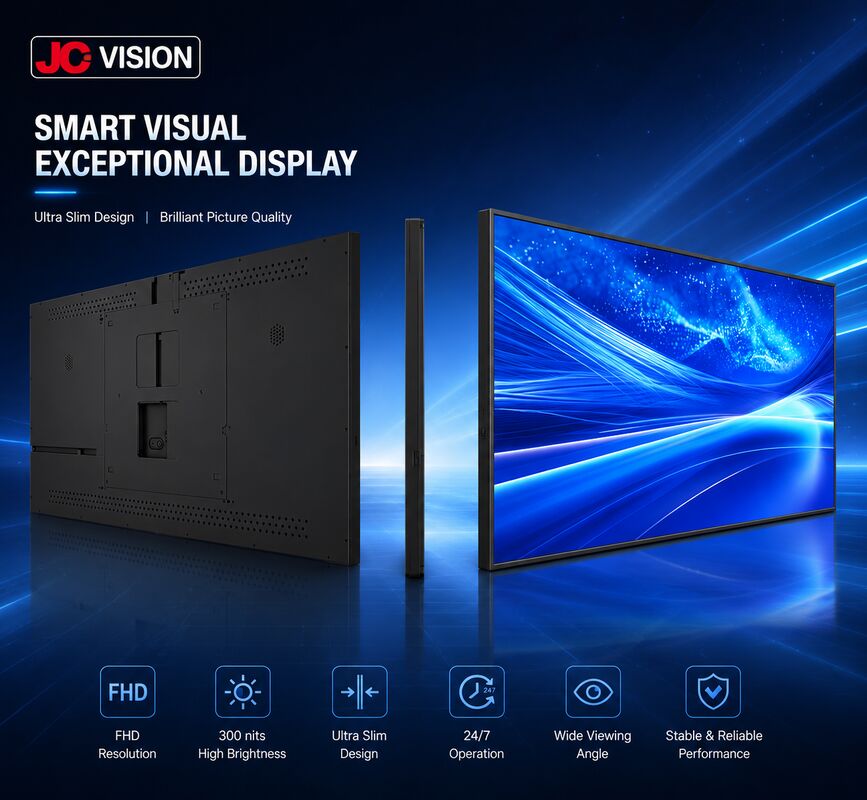

Introducing the JCVision 32-inch Wall Light Box (Square Edge) – a compact yet powerful indoor digital signage solution perfect for retail stores, restaurants, hotels, and commercial environments where space is limited but visual impact matters.
The 32-inch E-LED backlit panel delivers 1920×1080 Full HD resolution with 300 cd/m² brightness, 1200:1 contrast ratio, and 89° ultra-wide viewing angles (L/R/U/D), ensuring clear and vibrant visuals from any direction. With a 6ms response time, it handles dynamic video content smoothly.
Powered by the Hisilicon Hi3751V352F quad-core chipset (up to 1 GHz) and Mali-450 MP2 GPU, the display runs on Android 9.0 with 2GB RAM and 32GB internal storage. It supports a wide range of video formats (MPEG4, MPEG2, WMV, MOV, AVI, etc.) and offers 1080P@60Hz video decoding.
Connectivity options include 2× USB, 1× HDMI IN, RJ45 Ethernet, and 2.4G Wi-Fi (802.11b/g/n). An optional 4G module is available for remote content management. The unit supports both horizontal and vertical wall mounting, making it ideal for digital menu boards, promotional displays, signage, and information kiosks.
Key Specifications:
-
Screen Size: 32 inch
-
Resolution: 1920×1080
-
Brightness: 300±20 cd/m²
-
Response Time: 6ms
-
OS: Android 9.0
-
RAM / Storage: 2GB / 32GB
-
Power: ≤120W
-
Dimensions (with wall mount): 725.80 × 420.30 × 29.20 mm
-
Weight: 8.0 kg (net)
